332 Hydraulic Force Gauge

The Erichsen Wuppertal Hydraulic Gauge Model 332 is engineered for permanent installation in a variety of machines and systems, offering exceptional durability and performance even in demanding conditions. This high-quality hydraulic gauge is built to withstand rough operational environments, making it ideal for use in permanent machinery and installations where reliability is crucial.

The Model 332 features a precise 100mm pressure gauge with zero point correction, ensuring accurate readings and reliable performance. The gauge’s robust construction is designed to endure the rigors of industrial settings, while its precision allows for accurate pressure measurements across a wide range of applications.

With a load range spanning from 1 kN (220 lbs) to 1000 kN (220,000 lbs), the Model 332 accommodates a broad spectrum of pressures, making it versatile enough for various industrial uses. Its accuracy is rated at 1.6% of the full scale, ensuring dependable performance and minimal measurement error. Additionally, the gauge includes options for high-pressure hoses and capillary tubes, providing flexibility for different installation requirements.

The Erichsen Hydraulic Gauge Model 332 is equipped with a zero point adjustment feature, allowing users to calibrate the gauge easily and maintain precision over time. A wide range of accessories is available to tailor the gauge to specific applications, enhancing its versatility and functionality.

Key Features:

• Precision 100mm manometer for accurate pressure measurement
• Zero point adjustment for calibration and accuracy
• Wide load range from 1 kN (220 lbs) to 1000 kN (220,000 lbs)
• Accuracy of 1.6% of full scale
• Options for high-pressure hoses and capillary tubes

To purchase Version "B" Click here to contact our distributor

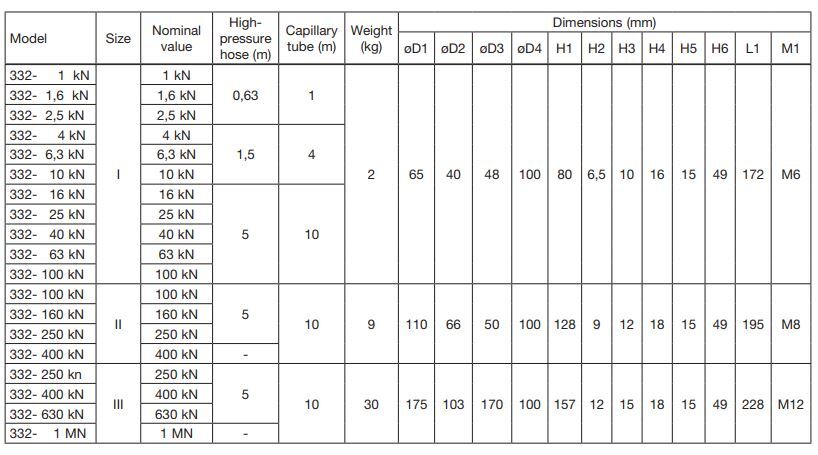

Refer to the specification sheet for details on dimensions and weight.

Specification sheet
