338 Hydraulic Force Gauge

Introducing the Erichsen Wuppertal Hydraulic Gauge 338, a durable and reliable force measurement solution designed for both permanent installations and occasional force checking. Engineered for demanding industrial environments, this robust hydraulic gauge is ideal for use on large surfaces, making it a versatile tool for various applications. Whether you need to perform spot checks or integrate the gauge into a long-term setup, the Hydraulic Gauge 338 offers the precision and dependability required in harsh operating conditions.

One of the standout features of the Erichsen Force Gauge 338 is its compact and rugged design, built to withstand the rigors of industrial use. The inclusion of an alignment ball ensures easy and accurate load alignment, enhancing the gauge's usability. Additionally, the standard model comes equipped with a 63 mm diameter gauge featuring a maximum reading pointer, allowing for clear and precise readings during measurements.

The Hydraulic Gauge 338 offers a wide load range, from 400N (90 lbs) to 63kN (14,000 lbs), catering to various force measurement needs. With an accuracy of 1.6% of the full scale, this gauge delivers reliable and consistent results. Optional high-pressure hose and capillary tube configurations further enhance its adaptability to different setups.

Key Features of the Erichsen Force Gauge 338:

• Compact and durable construction for rough environments
• Easy load alignment with the integrated ball feature
• Standard gauge with maximum reading pointer for clear measurements
• Wide load range from 400N to 63kN
• High accuracy of 1.6% of full scale
• Available with high-pressure hose and capillary tube options

Choose the Erichsen Wuppertal Hydraulic Gauge 338 for a reliable, robust, and accurate force measurement solution that stands up to the demands of industrial use.

To purchase Version "B" Click here to contact our distributor

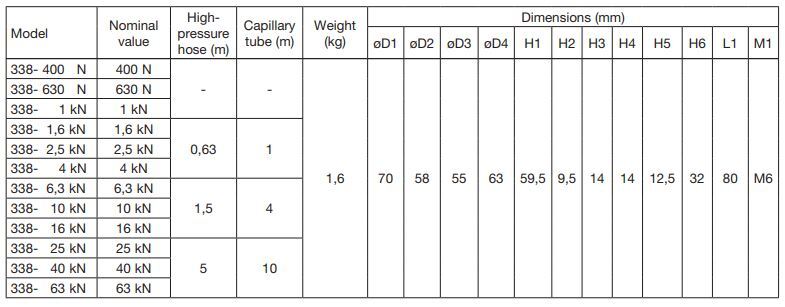

Refer to the specification sheet for details on dimensions and weight.

Specification sheet
