1986 SOLFRUNT EZ Fill

1986 SOLFRUNT EZ Fill | 0 - 10000 KPA (170757KX)

$554.90

Specifications

CollapseExpand
SKU:
170757KX-NO-NO-NO-NO
UPC:
Availability:
Usually ships within 8 Weeks
CASE STYLE:
Solid Front Safety Case
LIQUID FILL:
YES
PRESSURE RANGE:
0 - 10000 kPa
PRESSURE SCALE(S):
kPa
SIZE:
4 1/2" (115mm)
CASE MATERIAL:
PET Turret, Black
CONNECTION SIZE:
1/2 NPT
MOUNTING LOCATION:
Low Mount
ACCURACY:
+/- 0.5% of Span
PRODUCT TYPE:
Process Gauge
WETTED MATERIAL:
Monel

Options

CollapseExpand

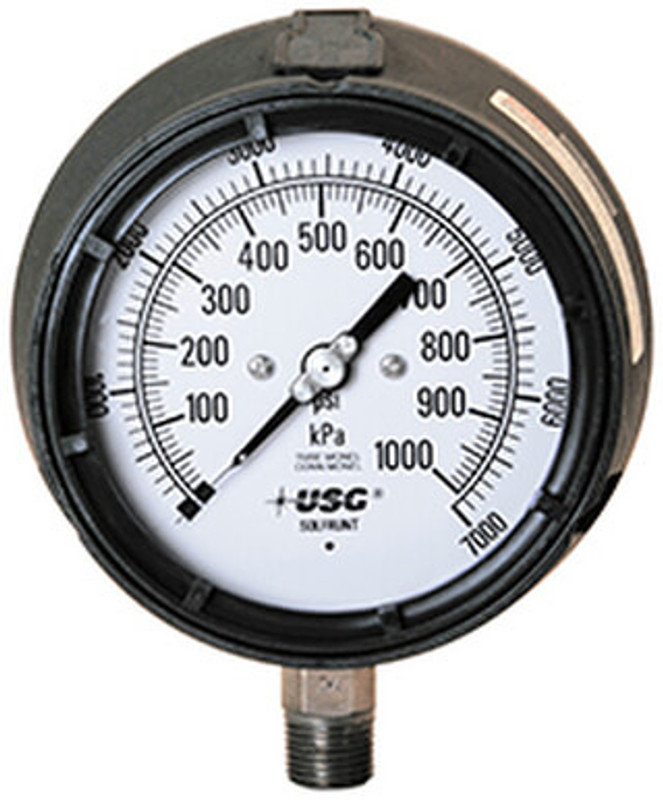

This pressure gauge has a solid front black glass reinforced thermoplastic (PBTB) turret style case for chemical and petrochemical processing applications. For users needing a liquid filled pressure gauge the 1986 comes standard with an E-Z Fill field fillable case. No extra parts are needed to make this gauge a liquid filled pressure gauge. It is also available with an optional yellow or orange case.  The 1986 gauge also provides NEMA 4x / IP67 weather protection for outdoor applications.The Model 1986 process gauges are supplied in 21 vacuum, compound, and pressure ranges from 30" Hg vacuum through 10 000 psi. Standard dials are single psi gauge pressure, but the gauge can also be ordered with dual scale psi/metric scales or custom dials.
Specification Sheet
This product comes with a 1 year Warranty
