1929 SOLFRUNT | 60 - 0 - 60 IN H2O (133788X)

$1,033.60

Specifications

CollapseExpand
SKU:
133788
UPC:
Availability:
Usually ships within 12 Weeks
CASE STYLE:
Solid Front Safety Case
LIQUID FILL:
NO
PRESSURE RANGE:
-60 - 0 - 60 inH2O
PRESSURE SCALE(S):
inH2O
SIZE:
4 1/2" (115mm)
CASE MATERIAL:
PET Turret, Black
CONNECTION SIZE:
1/4 NPT
MOUNTING LOCATION:
Low Mount
ACCURACY:
+/- 1% of Span
PRODUCT TYPE:
Process Gauge
WETTED MATERIAL:
316 Stainless Steel

Options

CollapseExpand

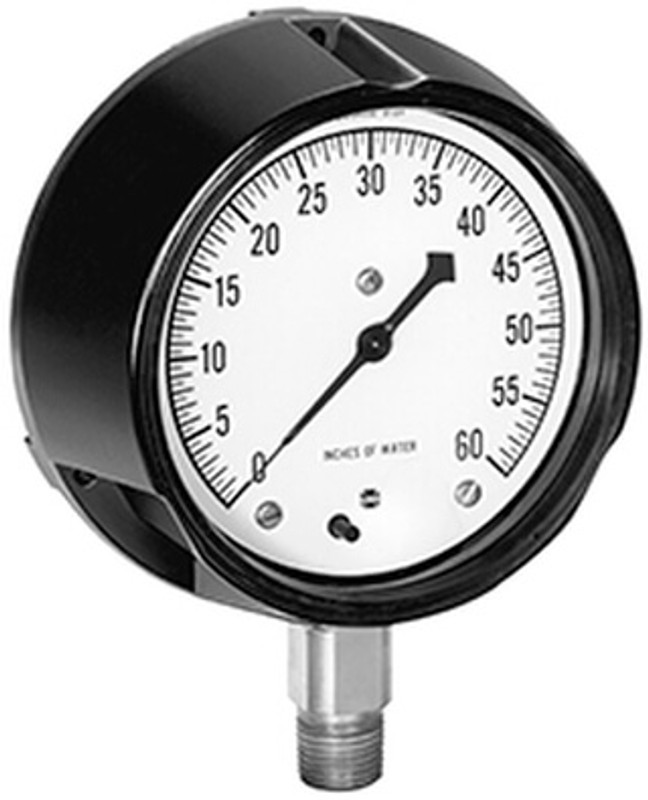

The SOLFRUNT 1929 low pressure process gauge has 316L SST wetted parts, including a diaghragm capsule for measruring very low inches of water pressure, from vacuum to 30” H2O through 0 to 200” H2O. The PET case is a solid front design for safety protection, with accuarcy of ± 1% of span (Grade 1A). Dials are avialbe in inches of H2O or psi, or metric versions.The Model 1929 pressure gauge is available in the low mount ¼” or ½” NPT process connection. The pointer is knife edge to allow for precious readings of the pressure.
Specification Sheet
This product comes with a 1 year Warranty
